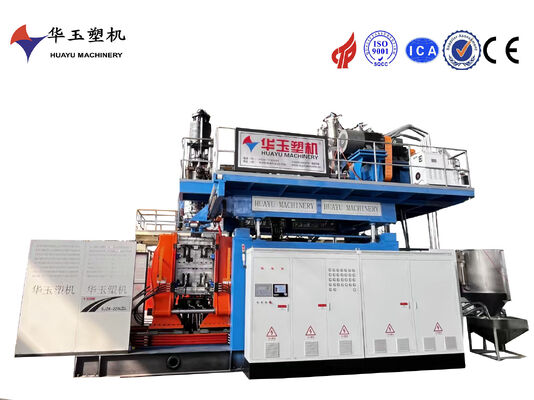

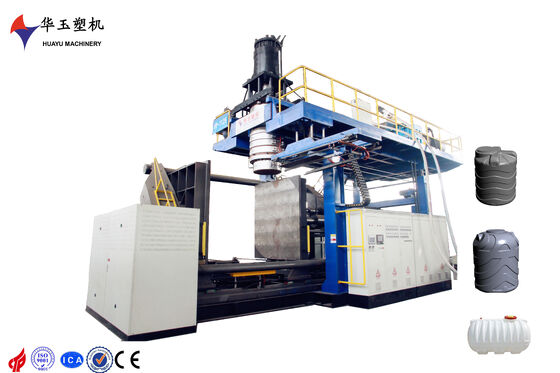

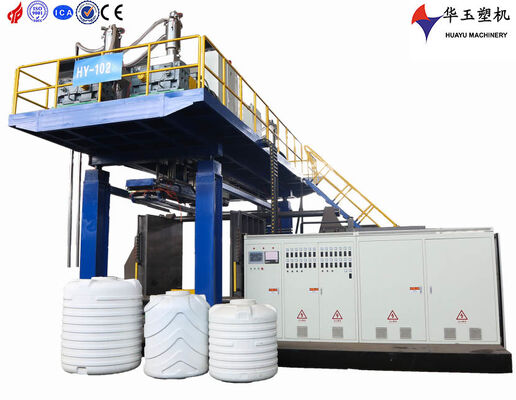

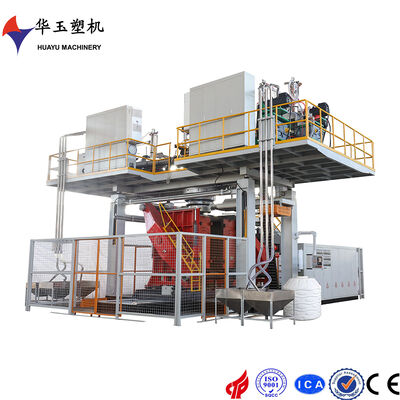

5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System
| Τόπος καταγωγής | Κίνα |
|---|---|
| Μάρκα | Huayu |
| Πιστοποίηση | CE,ISO9001 |
| Αριθμό μοντέλου | HYBM-5008 |
| Ποσότητα παραγγελίας min | 1 Σετ |
| Τιμή | Negotiate |
| Συσκευασία λεπτομέρειες | με κοντέινερ |
| Χρόνος παράδοσης | 4 μήνες |
| Όροι πληρωμής | L/C,T/T |
| Δυνατότητα προσφοράς | 4 σετ το μήνα |
Λεπτομέρειες
| Υλικά χοάνης | Ανοξείδωτο ατσάλι | Υλικό βιδών | 38 CrMoAIA, Νιτροποίηση |
|---|---|---|---|
| Υλικό | HDPE | Αντοχή | Εξοχος |
| Σύστημα ψύξης | Υδροψύξη | Τύπος μετάλλου | Αλουμίνιο |
| Χρώμα | Προσαρμοσμένο | Δυναμικό | εξαρτάται |
| Thermorelay | Siemens | ||
| Επισημαίνω | 5000L IBC blow molding machine,8-layer co-extrusion IBC machine,water cooling blow molding machine |
||
Περιγραφή προϊόντων
5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
This energy-saving blow molding machine features a 5000L capacity and 8-layer co-extrusion technology designed to optimize energy usage. The integrated water tank system ensures rapid and effective cooling, significantly reducing energy consumption and operational costs. With an advanced control system providing precise process control, the machine delivers high-quality products consistently. Built for durability and reliable performance, it is ideal for large-scale production environments. The water tank is engineered for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for industrial production needs.
Clamping System Specifications
| Parameter | Specification | Features |
|---|---|---|
| Platen Size | 2400*2500*70mm (W*H*T) | Smooth running, no noise; high clamping force |
| Clamping Cylinder | 350+200*2 | - |
| Clamping Cylinder Stroke | 2200mm | - |
| Clamping Force | 3000KN | - |
| Distance Between Platens | 1600-4000mm | - |
| Maximum Mold Size | 1800*2500mm (W*H) | - |
Blowing and Cooling System Specifications
| Parameter | Specification |
|---|---|
| Stretching Stroke | According to products |
| Blow Pin Up/Down Stroke | 600mm |
| Air Seat Stroke | 400mm |
| Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 3m³/min |
| Cooling Method | Circulating water |
| Water Pressure | 0.3MPa |
| Cooling Water Consumption | 75m³/h |
