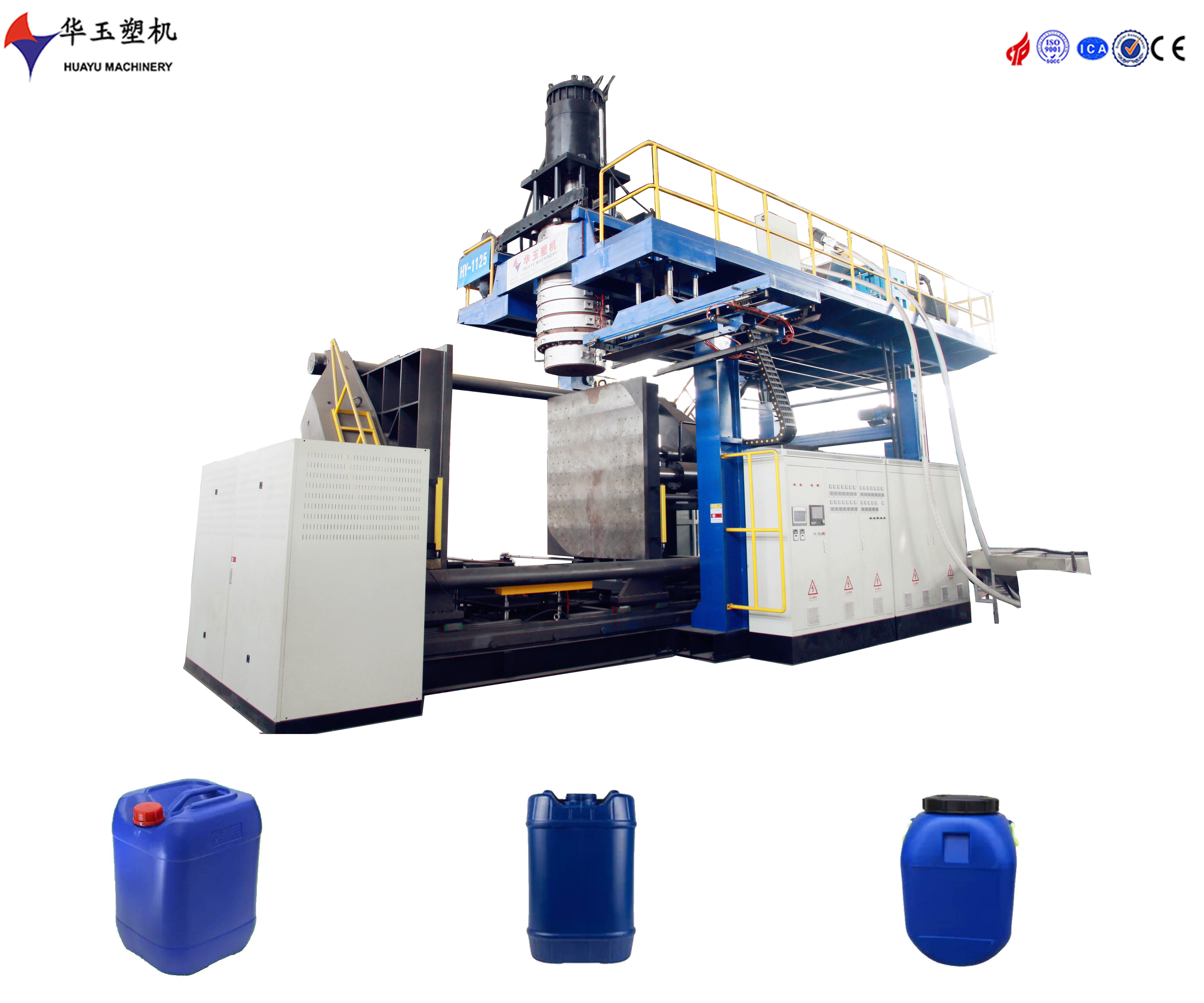

Huayu 100L water tank high speed fully automatic extrusion blow moulding machine
| Τόπος καταγωγής | Κίνα |
|---|---|
| Μάρκα | Huayu |
| Πιστοποίηση | CE,TUV,ISO9001，SGS |
| Αριθμό μοντέλου | HYBM-100L |
| Ποσότητα παραγγελίας min | 1 Σετ |
| Τιμή | negotiable |
| Συσκευασία λεπτομέρειες | Το μηχάνημα θα αποσυναρμολογηθεί σε πολλά μέρη για τη μεταφορά εμπορευματοκιβωτίων. |
| Χρόνος παράδοσης | 4ΜΗΝΑ |
| Όροι πληρωμής | L/C, T/T |
| Δυνατότητα προσφοράς | 40sets/έτος |
Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.
WhatsApp:0086 18588475571
σούφατ: 0086 18588475571
σκυϊδάκι: sales10@aixton.com
Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.
xΛεπτομέρειες
| Η χωρητικότητα χτύπησε | 25-100 | Διάσταση μηχανής | 6.3*4.2*4.2 |
|---|---|---|---|
| Μέσος όρος | 40 kW | Συνολική ισχύς | 103kW |
| Κινητήρας εκχυλίσματος | 45kW | Διάμετρος βιδών | 90mm |
| Αναλογία βιδών L/D | 28: 1 | ||
| Επισημαίνω | 100L water tank blow moulding machine,high speed automatic blow moulding machine,extrusion blow moulding machine with water tank |
||
Περιγραφή προϊόντων
Huayu 25-100L water tank blow moulding machine
Machine specifications
| 25-100L | 1layer | 2layers | 3layers |
| Capacity rang | 25-100L | 25-100L | 25-100L |
| Machine dimension | 6.3*4.2*4.2M | 6*5.2*4.5M | 7*5.2*4.6M |
| Average | 40KW | 70KW | 90KW |
| Total power | 103KW | 145KW | 180KW |
| Accumulator capacity | 7KG-12KG | 7KG-12KG | 7KG-12KG |
| Extruder motor | 45KW | 37KW*2 | 45KW+15KW*2 |
| Screw diameter | 90MM | 80MM*2 | 90MM*1/65MM*2 |
| Screw L/D ratio | 28:1 | 28:1 | 28:1 |
| Plasticizing capacity | 120KG/H | 150KG/H | 170KG/H |
| Platen size | 800*900MM | 800*900MM | 800*900MM |
| Platen distance | 500-1400MM | 500-1400MM | 500-1400MM |
| Clamping force | 500KN | 500KN | 500KN |
| Servo motor | 28KW | 28KW | 28KW |
Technical features:
1. The equipment adopts Siemens control system and imported hydraulic system, making it more stable and durable.
2. The equipment adopts nano heating coils, which have higher thermal efficiency and better energy-saving effect.
3. Adopting the world's advanced MOOG wall thickness control system, wall thickness control is more precise
4..Equipped with Schneider soft start appliances, the equipment operates more stably.
Company advantage
Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!
In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.
Arrange professional and technical engineer to help equipment operators installation and connect water and electricity of the blow molding machines with auxiliary equipment,to enable the equipment a standardized and safe manner to running. We also provide training the machine operators, so that operators can operate the blow molding machine skillfully and master the maintenance of the equipment.

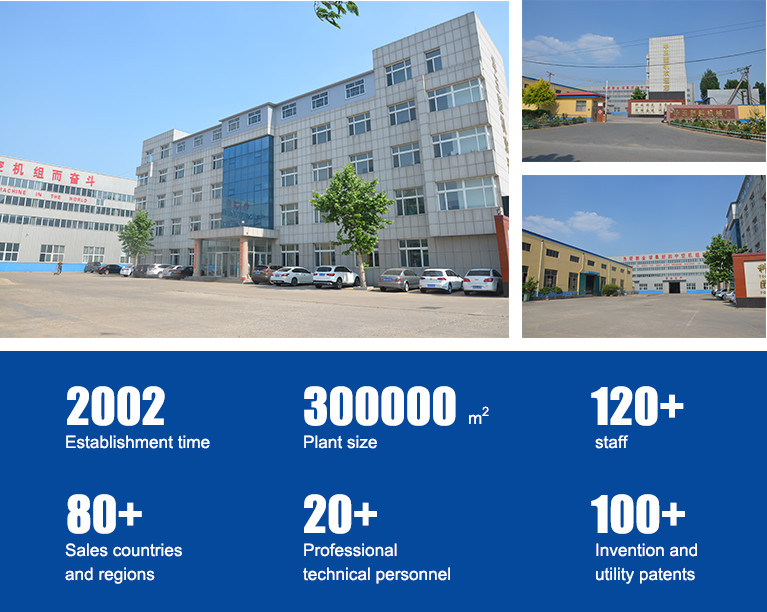

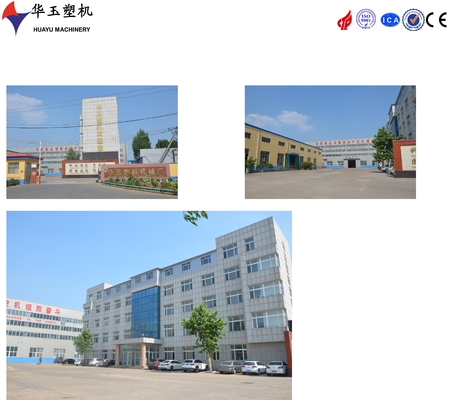

Weifang Plastic Machinery Co., Ltd. has over 20 years of experience in producing and designing blow molding machines, and has over 30 comprehensive mechanical processing equipment such as large machining centers, large floor boring and milling machines imported from Germany, large gantry milling machines, and large CNC lathes, which can grasp the accuracy of equipment processing from the source.
