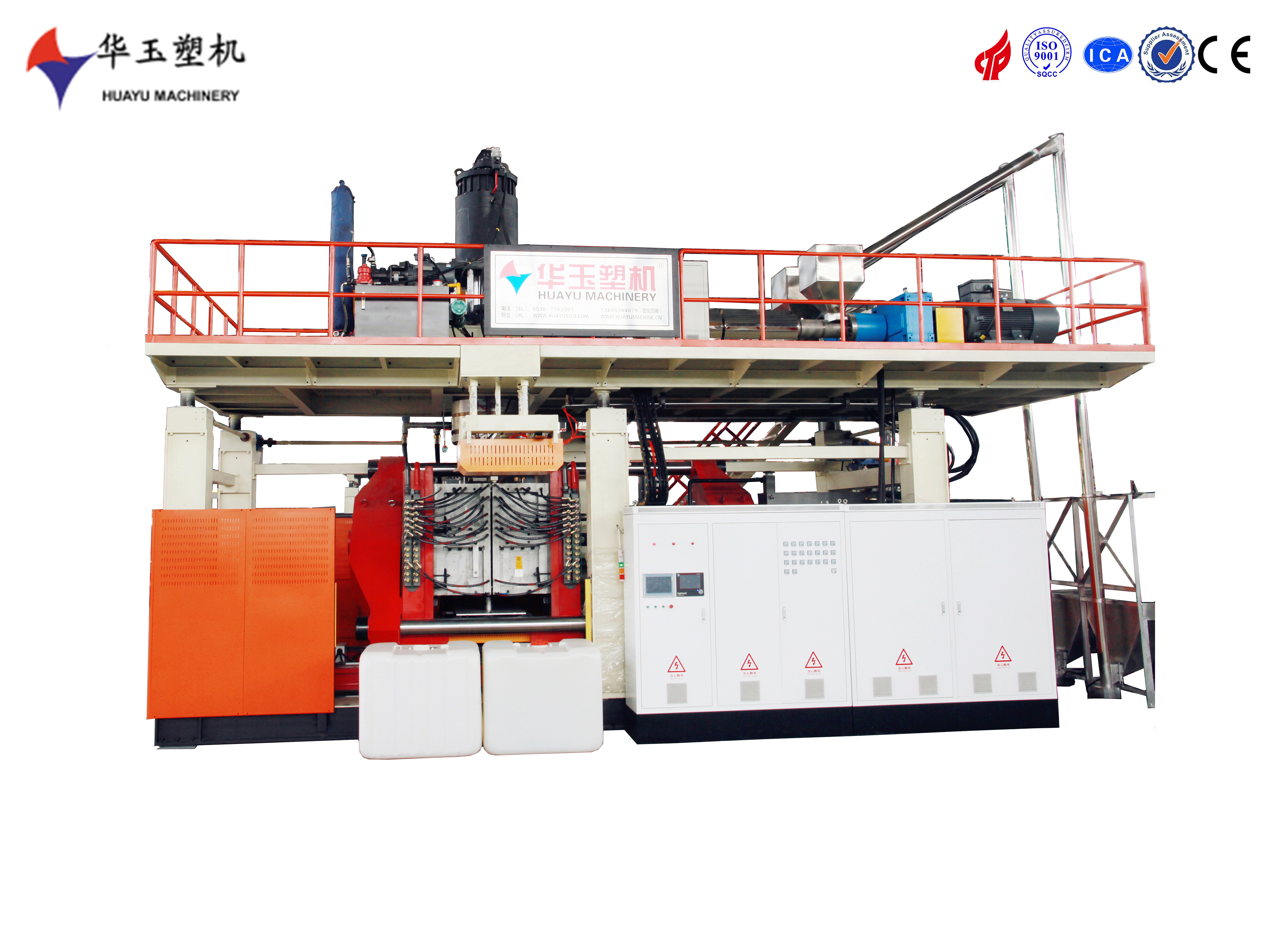

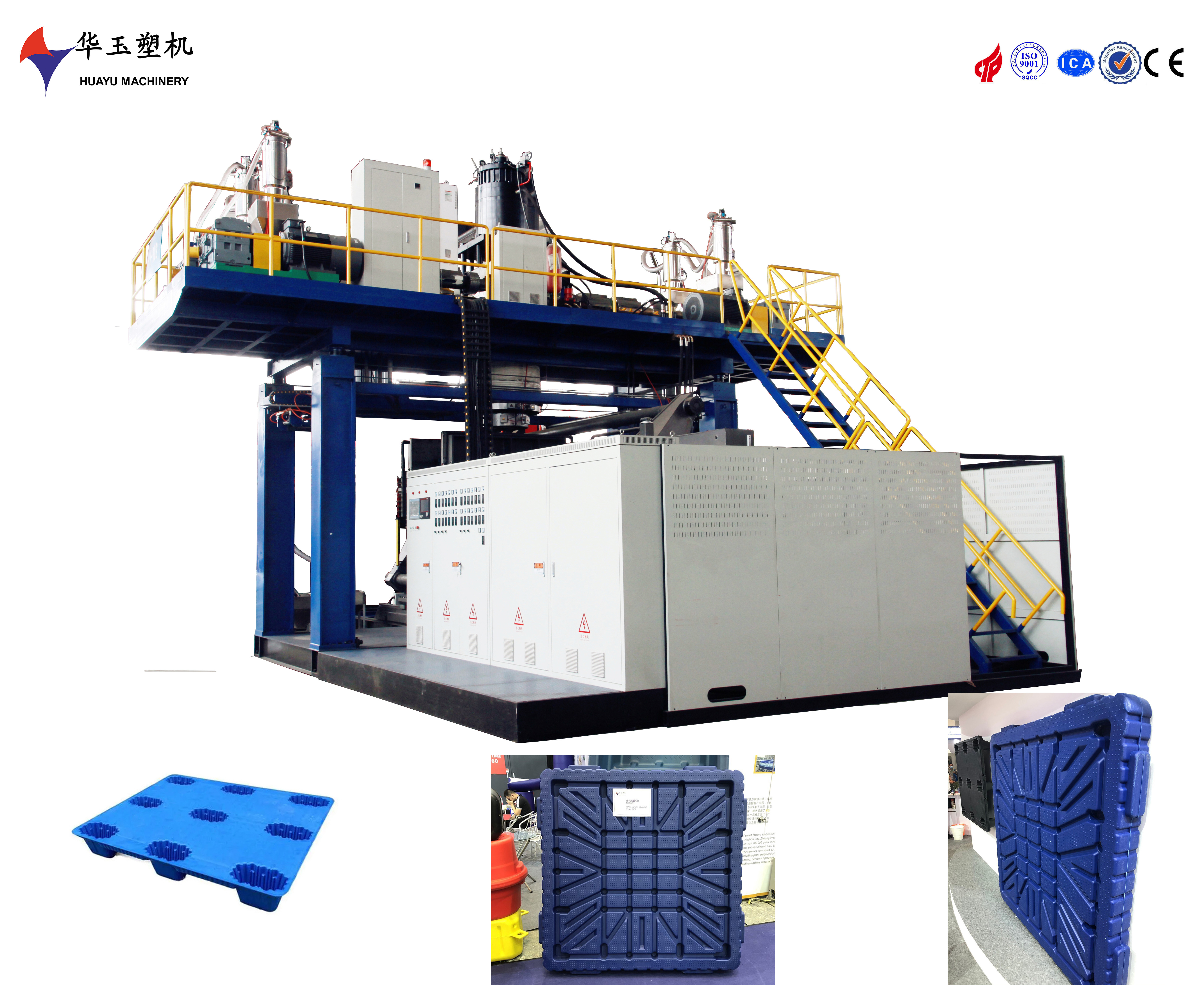

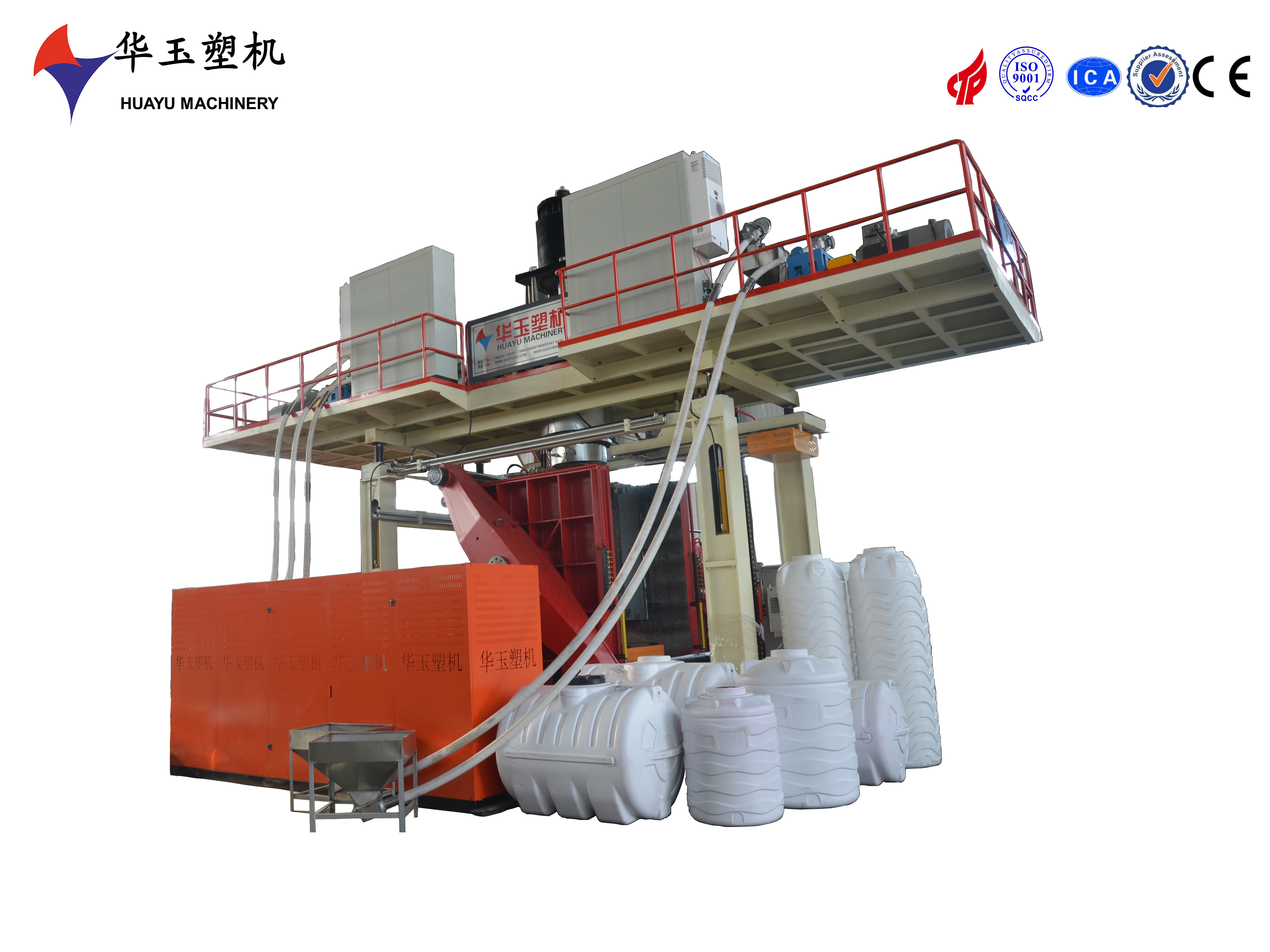

2000L 5-Layer Large Heavy-Duty Water Tank Blow Molding Machine
Τόπος καταγωγής | ΚΙΝΑ |
---|---|
Μάρκα | HUAYU |
Πιστοποίηση | ISO9001 ISO |
Αριθμό μοντέλου | HYBM2000-5 |
Ποσότητα παραγγελίας min | 1 σετ |
Τιμή | 260000 USD |
Συσκευασία λεπτομέρειες | να αποσυναρμολογείται σε πολλά μέρη για τη μεταφορά εμπορευματοκιβωτίων |
Χρόνος παράδοσης | 4 μήνες |
Όροι πληρωμής | T/t, l/c |
Δυνατότητα προσφοράς | 1 σύνολο 120 ημερών |

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.
WhatsApp:0086 18588475571
σούφατ: 0086 18588475571
σκυϊδάκι: sales10@aixton.com
Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.
xΠροϊόν | Υδροδοχείο, άλλο πλαστικό προϊόν | Βασικά σημεία πώλησης | Επικίνδυνες πωλήσεις |
---|---|---|---|
Φάσμα τάσης | 220V/380V/415V/440V | Πεδίο εφαρμογής | Υγρή συσκευασία |
Σημείο πώλησης | Υψηλή απόδοση | Σερβο βαλβίδα | Φουσκωτό |
Μέγεθος πλατφόρμας | 1500*1600*60mm | PLC | SIMENS ((Γερμανία) |
Μέθοδος χύτευσης | Τυποποίηση με εξάντληση | Κιβώτιο ταχυτήτων | Γκουόμο |
Κλειδιά | Σερβοκινητήρας, τηλεχειριστήριο | Εξουσία | 62 kw |
Μοτέρ | 5.5 | Εξοργιστής | Μεμονωμένος βίδα |
Παραγωγικότητα | 16-25 τεμάχια/ώρα | ||
Επισημαίνω | 2000L water tank blow molding machine,5-layer heavy-duty water tank machine,large water tank molding machine with warranty |
This 2000L five-layer heavy-duty blow molding machine is designed for producing ultra-high-performance multi-layer plastic products. The quintuple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, and excellent thermal stability. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
blowing and cooling system |
||
stretching stroke |
according to products |
|
blow pin up/down stroke |
600mm |
|
air seat stroke |
400mm |
|
maximum air pressure |
0.8Mpa |
|
air consumption |
2.3m3/min |
|
Cooling method |
Circulating water |
|
Water pressure |
0.3MPa |
|
Cooling water consumption |
60m3/h |
|
Hydraulic system |
||
ain oil tank capacity |
1200L |
Servo motor, less energy consumption, high efficiency, low noise |
n oil pump |
gear pump160CC |
|
main oil pump motor |
45kw |
|
oil tank capacity |
200L |
|
oil pump model |
Plunger pump22 |
|
Servo oil pump motor |
7.5kw |
|
